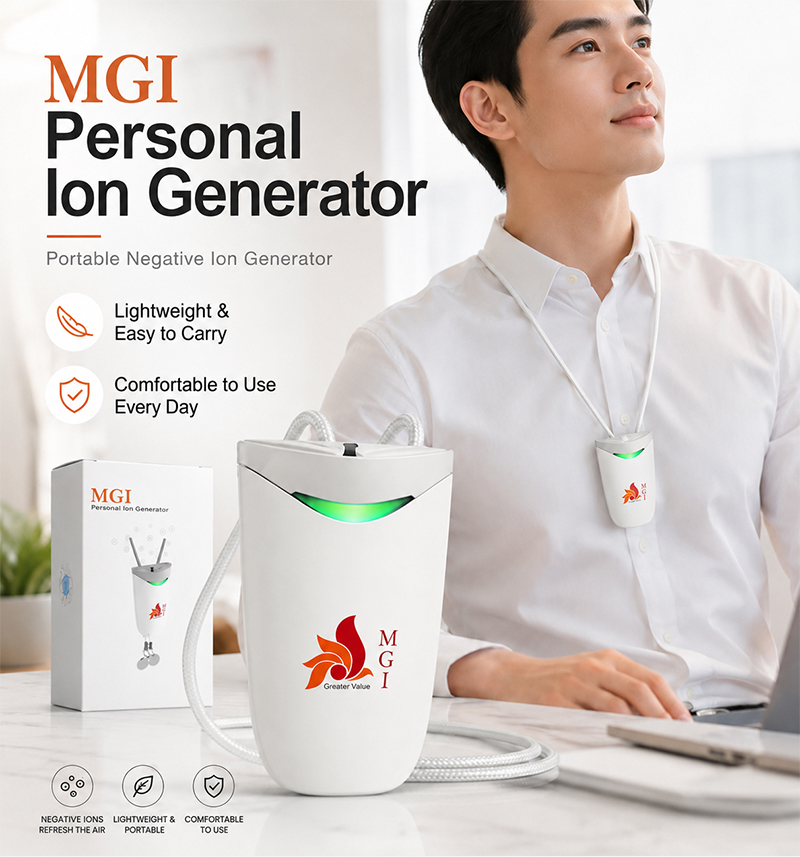

MGI Personal Ion Generator


Removes 99.9% of smoke particles in only 3 minutes and 99% of airborne viruses in a 0.2m3 space in 20 minutes.

Compact size, easy to carry.

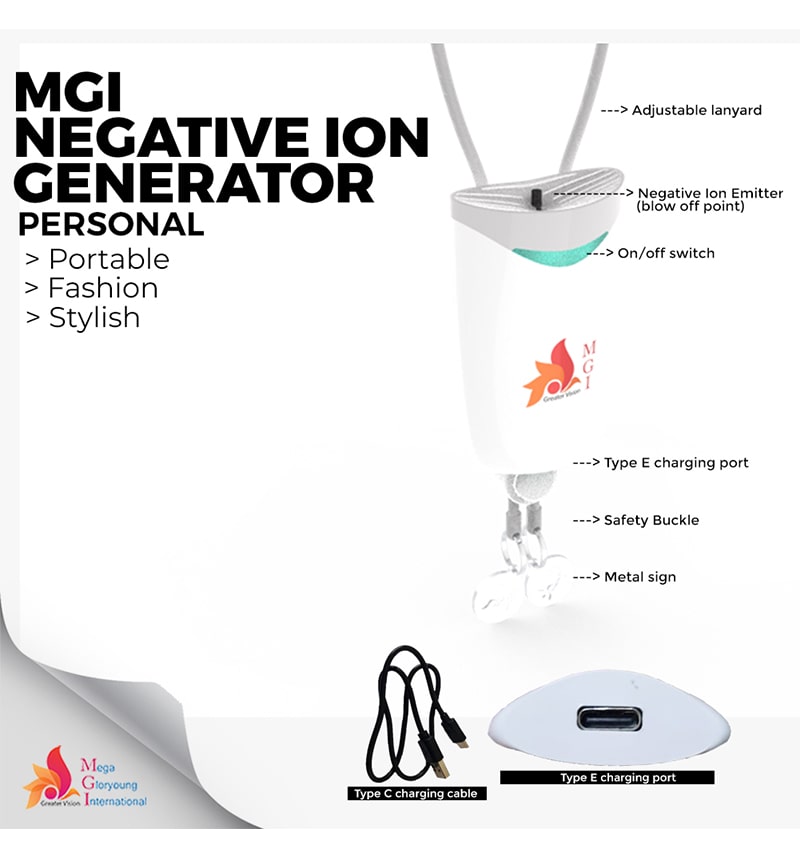

Respecting the principle of line aesthetics, integrating avant-garde design into one, shaping a beautiful body and showing the temperament of independent personality. Small size, light and it work silently. It designed with lifting and adjustable hanging lanyard for your comfort.


What is negative ion generator?


A negative ion generator or air ionizer is a device that uses high voltage to ionize (electrically charge) air molecules. Negative ions or anions, are particles with one or more extra electrons, conferring a net negative charge to the particle. With a negative ion generator, the generator creates negative oxygen atoms, otherwise known as ions.


The generator then releases the ions into the surrounding atmosphere. A negative ion generator is completely safe and good for health. They emit negative ions into the air as a way to clean it. A negative ion is an oxygen atom with an extra electron, it is odorless.


Air ionizers and their connection to negative ions can mean big benefits to the respiratory system and overall health.


MGI NEGATIVE ION GENERATOR Terms of Warranty

  • One (1) year warranty from the date of original purchase of this product. (based on invoice inside the member area system)
  • Warranty does not cover normal wear and tear
  • The warranty covers only manufacturing defects

Product Specification

MGI Personal Negative lon Generator

Product Model : MGI-040 (B)
Charging Voltage : DC 5V
Battery Capacity : 500mAh
Charging Capacity : DC 5V~0.02A
Packaging Size : 65mm*46mm*111mm
Product Size : 44mm*20mm*70mm
Weight : 50g
Charging time : 40 - 50 minutes can be used for 48 hours of continuous usage (can be detected at 25 to 30 centimeters away)

Theory of generator


  1. The MCU in PCBA recognizes that the power button is pressed, and the battery power is output to the negative ion generator module after being stabilized by internal circuit processing, and the internal timing is turned on
  2. After the input DC is processed by EMI processing circuit and lightning protection circuit, the negative ion generator will rise to AC high voltage through pulse circuit, over-voltage and current limit; high and low voltage isolation and other lines, and then get pure DC negative high voltage through rectification and filtering of special grade electronic materials, connect the DC negative high voltage to the release tip made of carbon element, and generate it by DC high voltage at the tip High DC electric, high-speed emission of a large number of electrons (E -)
  3. The released electron (E -) will be captured by the oxygen molecule (O2) in the air to generate air anion
  4. The small particle size anion can actively capture the small particle dust, make it agglomerate and precipitate, effectively remove the micro dust of 2.5 μ m (PM2.5) and below, or even 1 μ m particles in the air, so as to reduce the harm of PM2.5 to human health. The purification effect of the ecological level anion on the air is derived from the combination of the negative ion and the positive particles such as bacteria, dust and smoke in the air, and gather elimination of PM2.5 ball hazards.
  5. When the timing is over or the battery power is exhausted, the MCU will automatically cut off the battery output and the power supply of the negative ion generator module

TIPS:

PCBA=Printed Circuit Board Assembly

MCU=Micro Controller Unit

EMI=Electro Magnetic Interference

Download Product E-Catalog

 E-Catalog pdf

After downloaded (android users) find the pdf at files > docs

The use of negative ions in the air

can have the following results:


  • Improved air quality, clear the air of airborne allergens such as pollen, mold spores, bacteria, and viruses.
  • The ionizers produce negative air ions that collide with suspended particles and give them a charge. The scientists believe charged particles aggregate together and fall out of the air, thereby disinfecting the atmosphere and stopping the transmission of infection.
  • Besides they also clear the air of dust, pet dander, and cigarette smoke.
  • Increase the flow of oxygen to the brain, resulting in higher alertness, decreased drowsiness, and more mental energy.
  • Produce biochemical reactions that increase levels of the mood chemical serotonin, helping to alleviate depression, relieve stress, and boost our daytime energy.
  • Remove particles, microbes, and odors from the air.
  • Make the air in the room healthier for people to breathe, especially for people suffering from allergies, asthma, and other respiratory-related ailments.
MGI ION GENERATOR MULTI PURPOSE product demonstration
MGI ION GENERATOR PERSONAL product demonstration
